multifunctional Servovalve Test Rig *NEW

- testing of valves
- logging of test data
- detailed test prozedures
- frequency response measurement

> specification [PDF]

Sapphir Servovalves

we can supply shortly
including test report

- servovalve 2 stage up to 75l/min
- servovalve 2 stage up to 230l/min
- servovalve 3 stage up to 1000l/min
- mechanical or electonic feedback

cross reference replacement on valves

Displacement Transducer Tool

available at short-notice are : 3 units

for installation and adjustment
all strokes,
complete set in wooden box
Sandner and compatible types

AV 250

available at short-notice are : 1 units
in production : 20 units

AV 250 Connection valve flow 250l / min
Low pressure adjustable,
high pressure 280bar shock free

Sandner-longitudinal cylinder SLZ 25-100

in production
(painting in the desired color possible)

basic: 25kN (@280bar)
stroke: 100mm (+/-50mm)
- including displacement transducer

- cylinder on request with valve plate
and servo valve

Sandner-longitudinal cylinder SLZ 40-100

in production
(painting in the desired color possible)

basic: 40kN (@280bar)
stroke: 100mm (+/-50mm)
- including displacement transducer

- cylinder on request with valve plate
and servo valve

Sandner-longitudinal cylinder SLZ 63-100

in production
(painting in the desired color possible)

basic: 63kN (@280bar)
stroke: 100mm (+/-50mm)
- including displacement transducer

- cylinder on request with valve plate
and servo valve

Sandner-longitudinal cylinder SLZ 25-250

in production
(painting in the desired color possible)

basic: 25kN (@280bar)
stroke: 250mm (+/-125mm)
- including displacement transducer

- cylinder on request with valve plate
and servo valve

Sandner-longitudinal cylinder SLZ 40-250

available at short-notice are : 1 units
(painting in the desired color possible)

basic: 40kN (@280bar)
stroke: 250mm (+/-125mm)
- including displacement transducer

- cylinder on request with valve plate
and servo valve

Sandner-longitudinal cylinder SLZ 63-250

available at short-notice are : 1 units
(painting in the desired color possible)

basic: 63kN (@280bar)
stroke: 250mm (+/-125mm)
- including displacement transducer

- cylinder on request with valve plate
and servo valve

Sandner-longitudinal cylinder SLZ 100-100

available at short-notice are : 1 units
(painting in the desired color possible)

basic: 100kN (@280bar)
stroke: 100mm (+/-50mm)
- including displacement transducer

- cylinder on request with valve plate
and servo valve

Sandner-longitudinal cylinder SLZ 100-250

in production
(painting in the desired color possible)

basic: 100kN (@280bar)
stroke: 250mm (+/-125mm)
- including displacement transducer

- cylinder on request with valve plate
and servo valve

Sandner-longitudinal cylinder SLZ 160-100

available at short-notice are : 1 units
(painting in the desired color possible)

basic: 160kN (@280bar)
stroke: 100mm (+/-50mm)
- including displacement transducer

- cylinder on request with valve plate
and servo valve

Sandner-longitudinal cylinder SLZ 160-250

available at short-notice are : 1 unit
(painting in the desired color possible)

basic: 160kN (@280bar)
stroke: 250mm (+/-125mm)
- including displacement transducer

- cylinder on request with valve plate
and servo valve

SCHENCK-longitudinal cylinder PL1.0K

available at short-notice are : 1 unit
(painting in the desired color possible)

basic: 1MN (@280bar)
stroke: 100mm (+/-50mm)
- including displacement transducer machine mount

- cylinder on request with valve plate
and servo valve

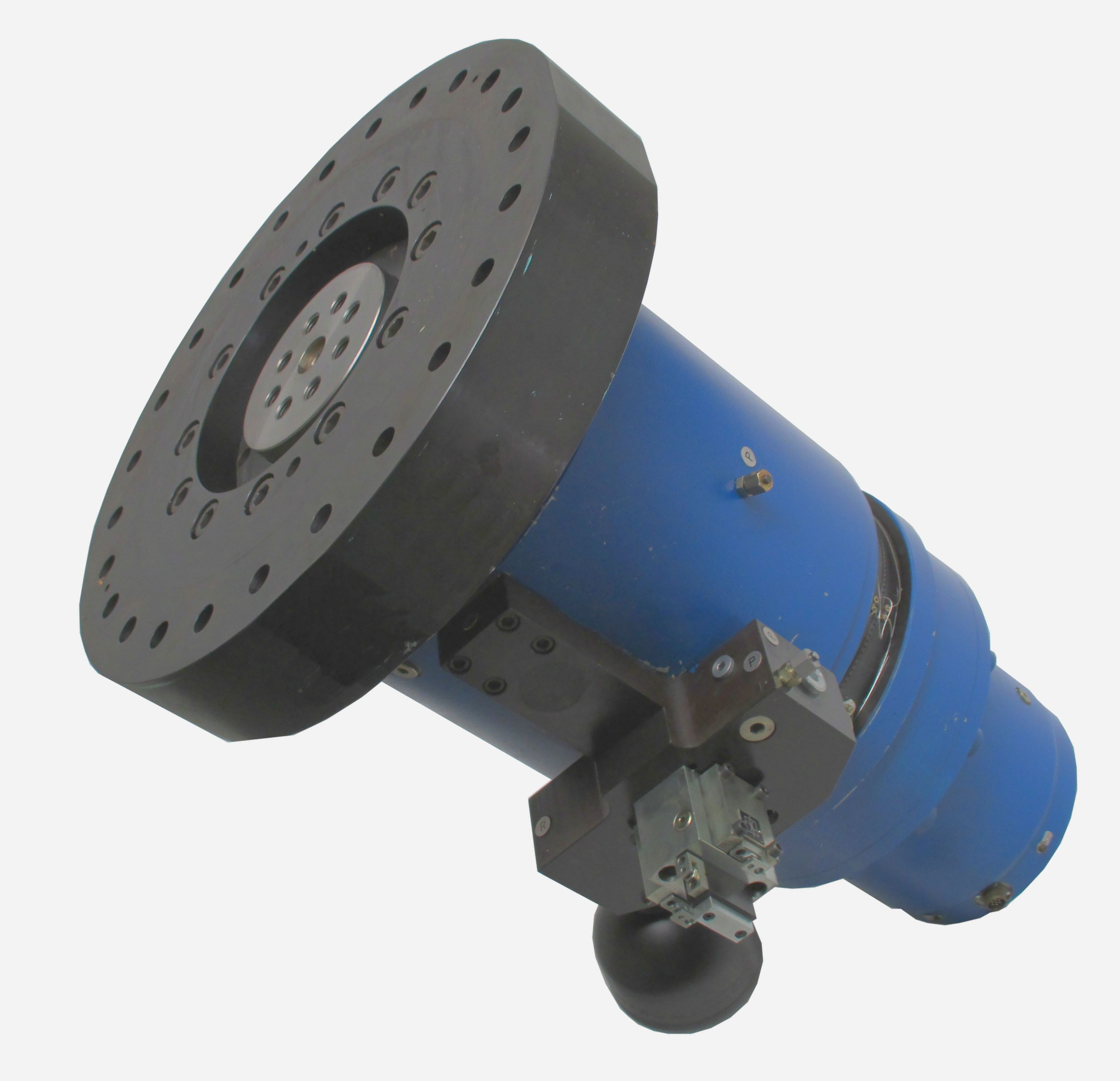

Hydropuls 1Mp-250
(generally overhauled / as new)

available at short-notice are : 1 unit
painting: RAL 7035

basic: 1Mp (@280bar)
stroke: 250mm (+/-125mm
including displacement transducer
hydrostatic bearing 4 pockets

- cylinder with valve plate
on request with diaphragm accumulator
and servo valve

Hydropuls 6Mp-100
(generally overhauled / as new)

available at short-notice are : 1 unit
painting: RAL 7035

basic: 6Mp (@280bar)
stroke: 100mm (+/-50mm
including displacement transducer
hydrostatic bearing 4 pockets

- cylinder with valve plate
on request with diaphragm accumulator
and up to 2 servo valves

valve block 125l / 2 servovalves

available at short-notice are : 1 units (4-port)
available at short-notice are : 4 units (5-port)

valve block 125l/min for actuator SLZ
to carry 2 servovalves

connection for differential-pressure transducer prepared

valve block 250l / 4 servovalves

available at short-notice are : 5 units (4-port)
available at short-notice are : - units (5-port)

valve block 250l/min for actuator SLZ
to carry 4 servovalves

connection for differential-pressure transducer prepared

leackage pump *NEW

available at short-notice are : 1 unit

extended dry run protection
model 230VAC 50Hz
signal cord
filter level gauge
20µm filter

- option 10µm filter element
